USB Tester 4-28V 7A LCD USB A&C Voltage Current Power Tester Multimeter, Fast Charge Detection Trigger Capacity Ripple Measurement, PD2.0/PD3.0,QC2.0/QC3.0

USB Tester 4-28V 7A LCD USB A&C Voltage Current Power Tester Multimeter, Fast Charge Detection Trigger Capacity Ripple Measurement, PD2.0/PD3.0,QC2.0/QC3.0

$85.45 USD
$0.00 USD $85.45 USD
Sale Sold out

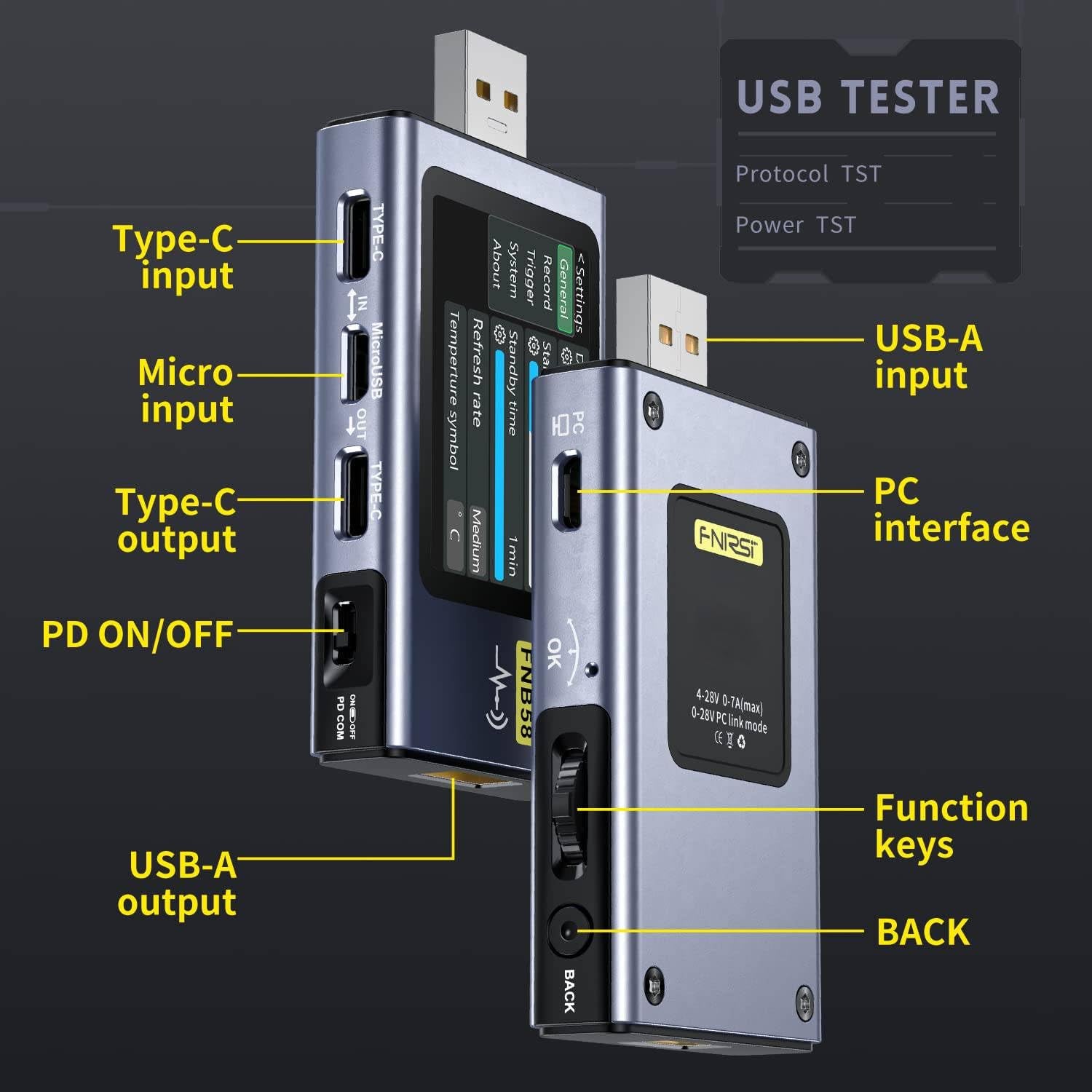

  • 【Updated USB Tester】FNIRSI FNB58 has a 2.0-inch TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a USB voltage andcurrent detection meter and a mobile communication terminal fast charging trigger with gravity sensor
  • 【Multifunction USB Digital Tester】FNB58 uses external 16-bit ADC, PD protocol physical chip. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers

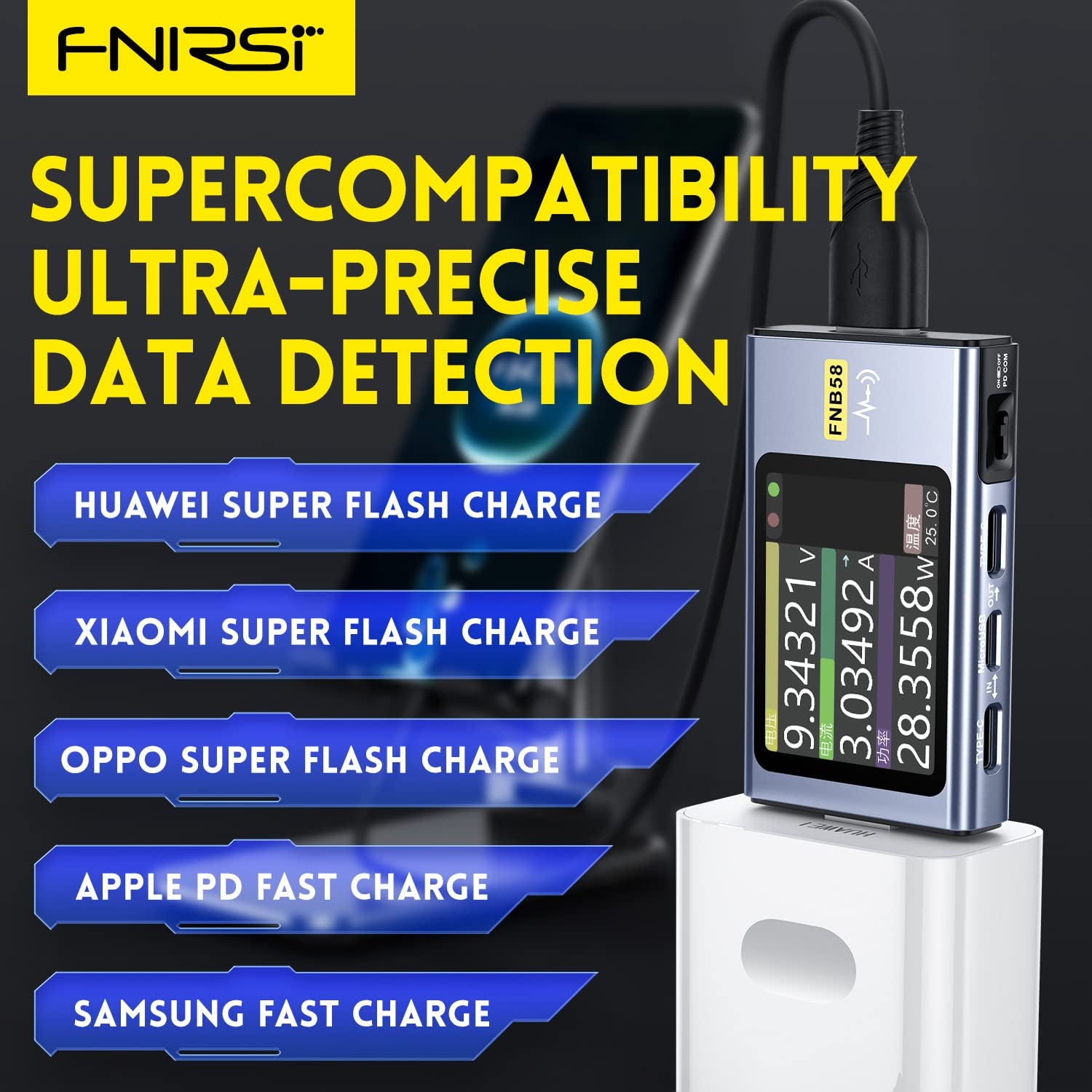

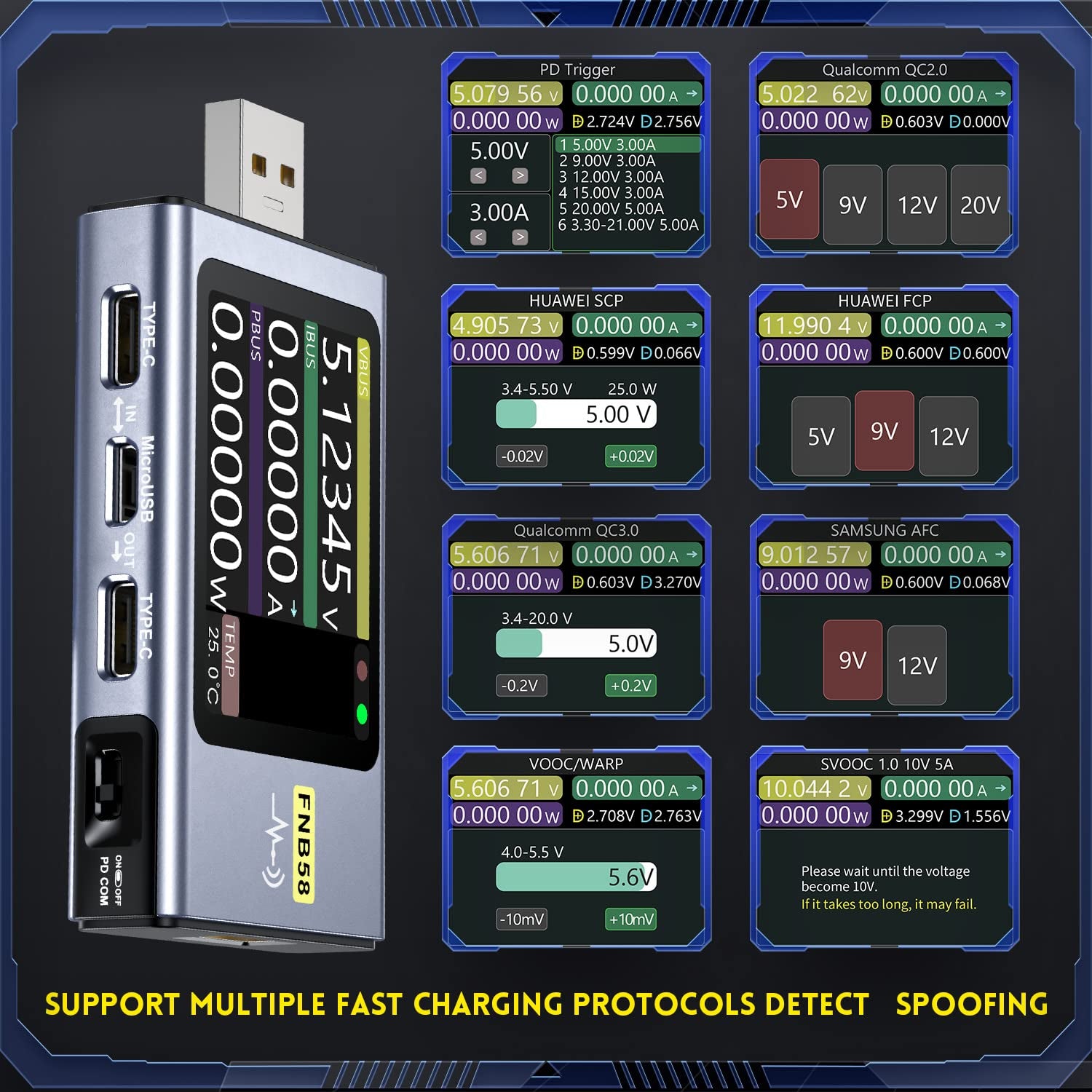

  • 【Fast Charge Protocol Trigger Detection】FNB58 supports QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion
  • 【Parameter Recording】The highest six-digit display of voltage, current and power. 10 sets of switchable capacity, power etc. Support low-speed waveform drawing, 2 sps-100 sps sampling rate. Support high-speed ripple drawing, up to 4 M sps sampling rate
  • 【USB tester detection function】The resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable
  • 【Note】In order to respond to the environmental protection policy and reduce the use of paper, FNB58 does not come with paper manuals. You can visit the website of FNIRSI on the box to download the manuals, including product update firmware, APP, etc

Product Description

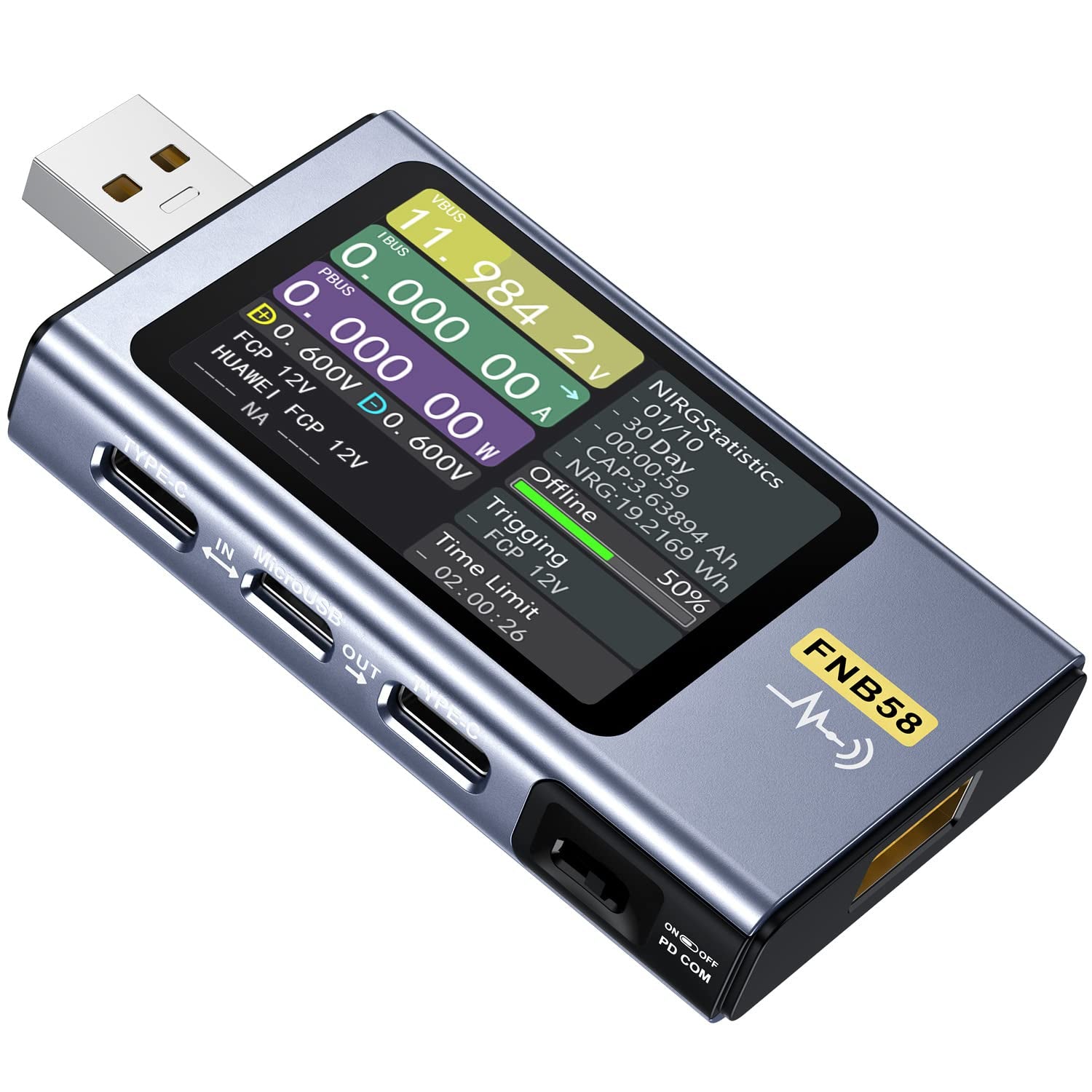

FNIRSI FNB58 is a high-reliability, high-safety versatile USB tester and fast charging trigger.

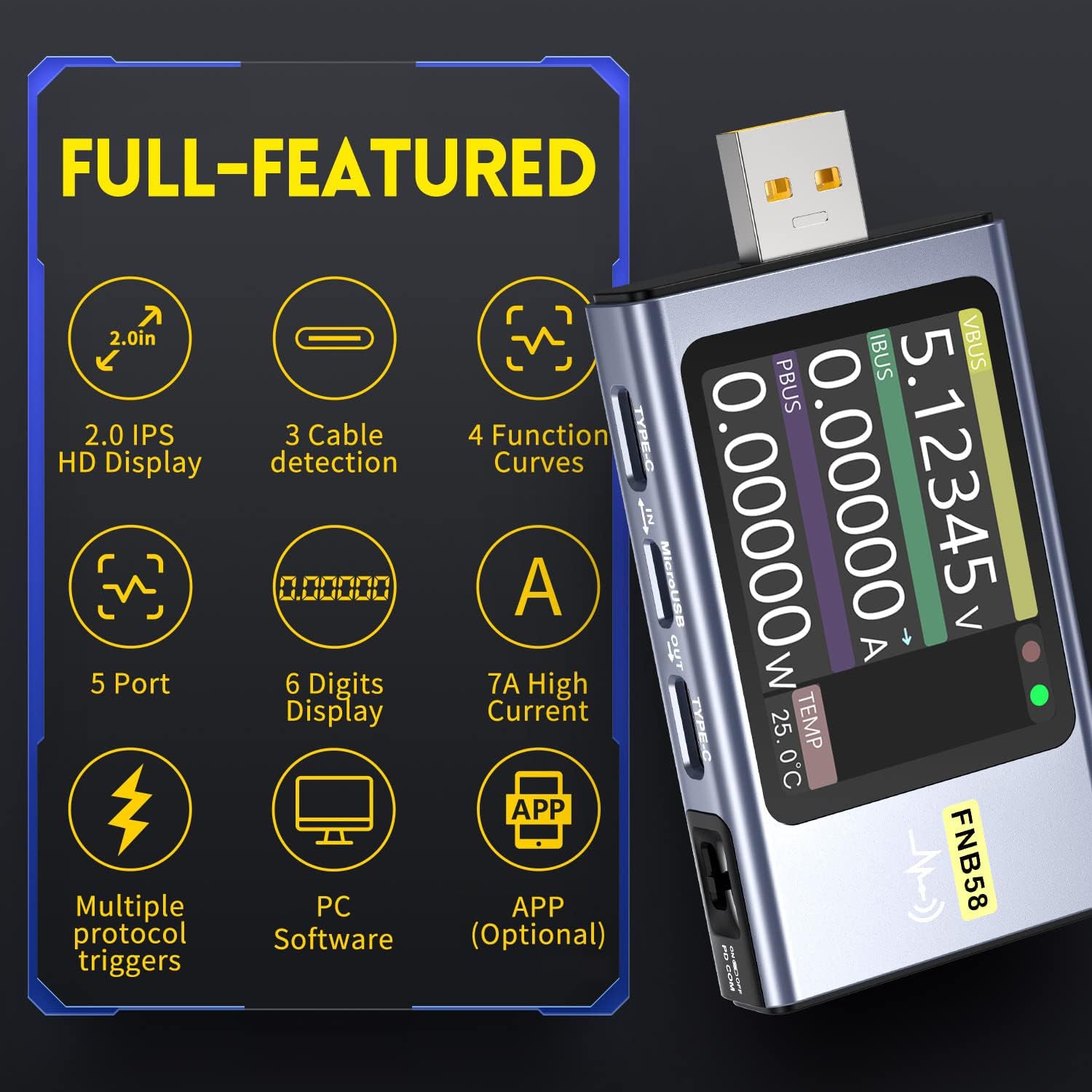

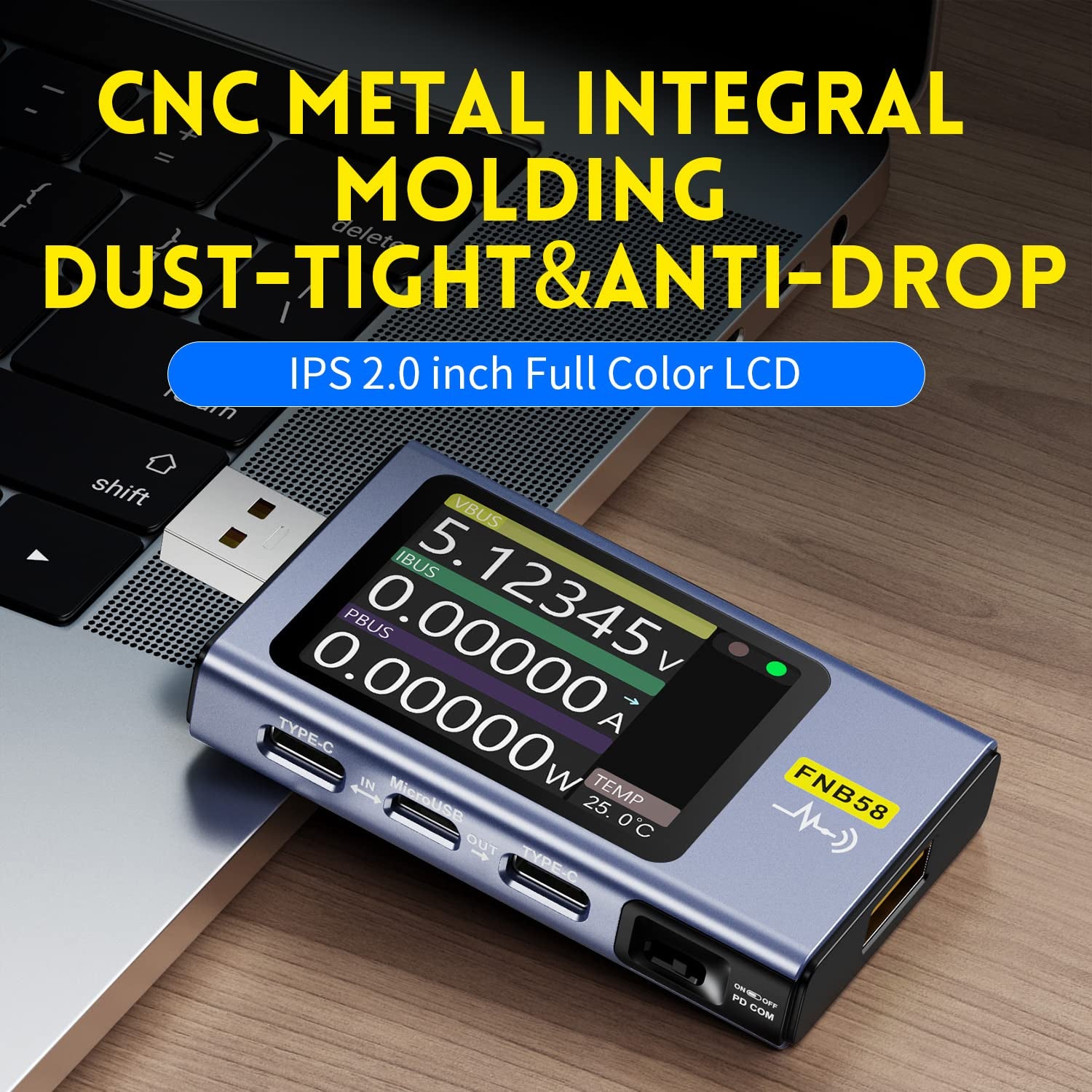

  • FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface.
  • FNB58 uses external 16-bit ADC, PD protocol physical chip, it can be used to test the fast charging protocol of chargers.
  • FNB58 can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks.
  • FNB58 can be used to measure the charging power of mobile phones and the input and output of mobile power supplies.

Four Functional Curve Display

Real-time voltage and current curve

View the change of the charging curve in real time, find the abnormal charging immediately.

Offline curve recording

Supports up to 9 hours of offline voltage and current curve recording, charging process fully displayed.

D+/D- voltage curve

Charging protocols Changes. Master in real time.

High-speed power ripple measurement

Charger ripple measurement, easy to screen inferior chargers.

Cable Detection Just Use FNB58

PD E-Marker Cable Detection

Read data information of CC line with E-Marker chip

DASH Cable Detection

Read DASH cable chip related data

Cable Interal Resistance Measurement

Constant current load two-step fast measurement of wire resistance
