Thunderbolt 4 Dock for Quad Monitors 100W, Thunderbolt Docking Station Connects up to Four 4K Monitors for Windows and Mac Laptops, 2X HDMI, 4X Thunderbolt 4/USB C, Driver Required TBT-6950PD
Thunderbolt 4 Dock for Quad Monitors 100W, Thunderbolt Docking Station Connects up to Four 4K Monitors for Windows and Mac Laptops, 2X HDMI, 4X Thunderbolt 4/USB C, Driver Required TBT-6950PD

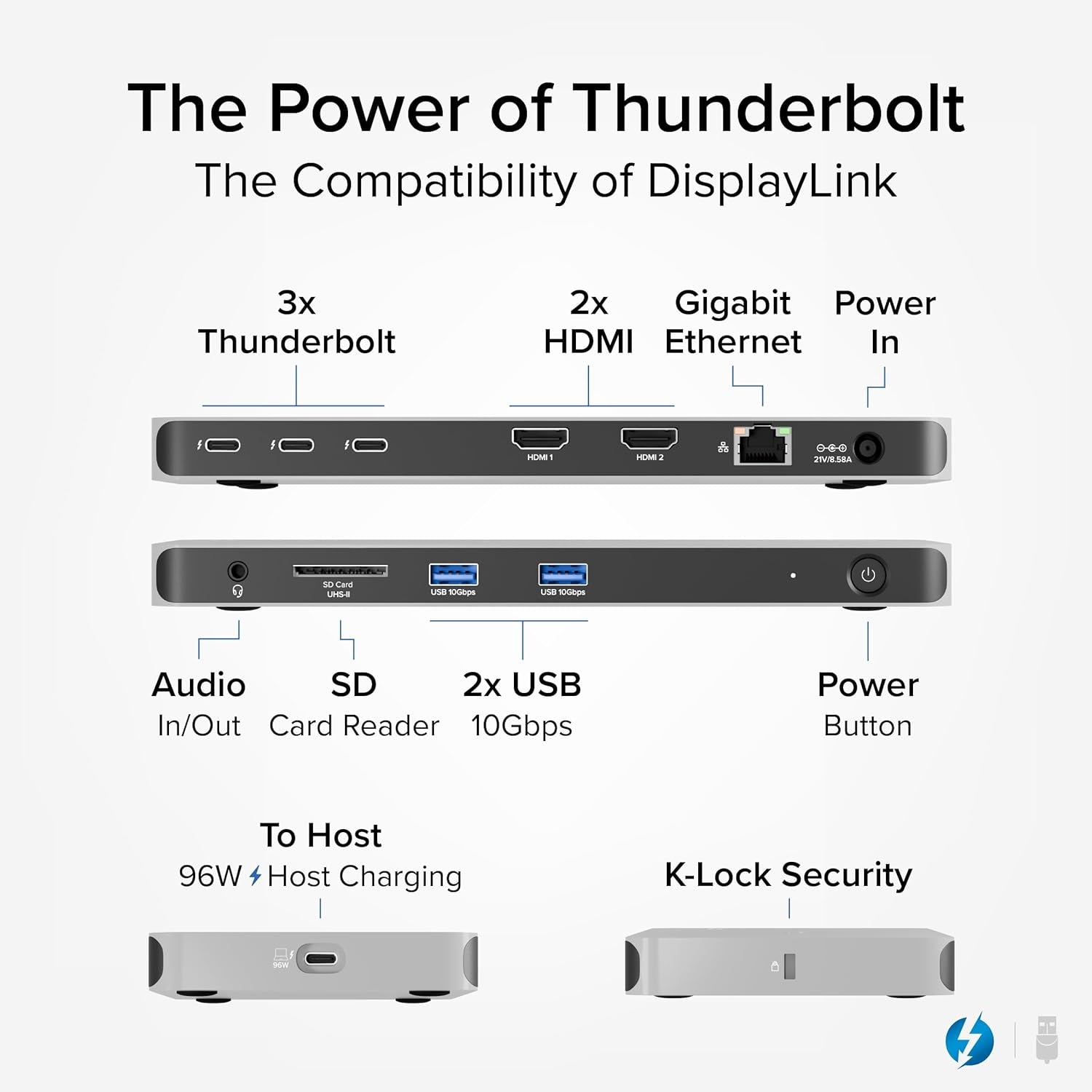

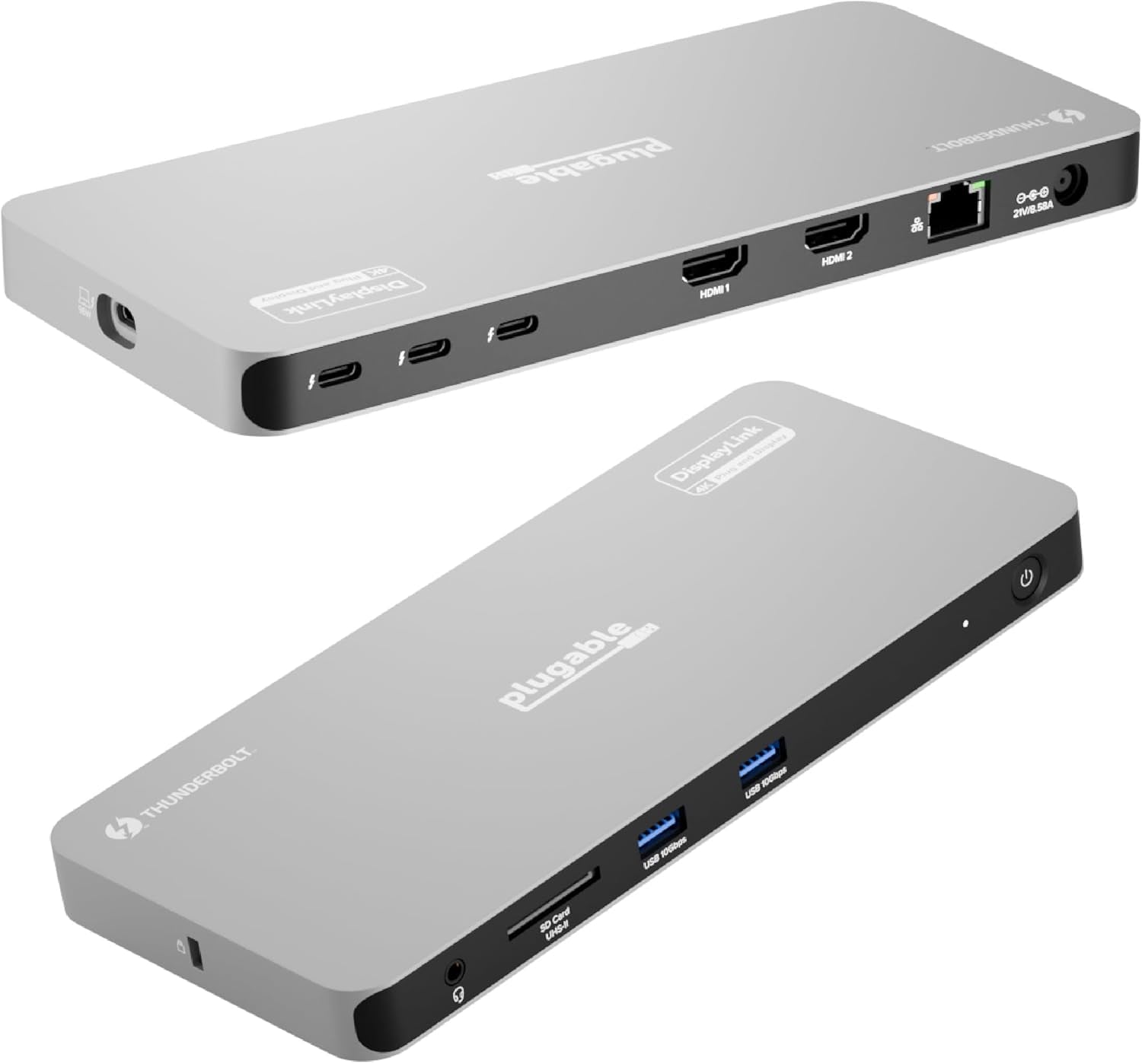

- Why Choose This Dock: The Plugable Quad Display Dock is a productivity powerhouse with up to 4 displays on PC and Mac, 100W (96W certified) host charging, 4x 40Gbps Thunderbolt ports, as well as high-speed USB ports, HDMI, Gigabit Ethernet, an SD Card slot, and more
- Quad Display: Featuring the power of Thunderbolt and the flexibility of DisplayLink technology, connect up to 4 displays (2x HDMI, 2x Thunderbolt). All four displays up to 4K or a single 8K display (Thunderbolt/USB-C display output capabilities determined by the host system). Note: The DisplayLink software application must be installed on a Windows or Mac computer for the dock’s HDMI video outputs to function. This process is typically automatic on Windows, manual install required on macOS.
- Thunderbolt 4 Dock: This Plugable docking station features 1x 40Gbps Thunderbolt port that connects the dock to your computer and offers up to 96W laptop charging, and 3x 40Gbps Thunderbolt ports for data, video, and 15W charging for your connected Thunderbolt, USB4, and USB-C devices
- Works With: This certified Thunderbolt dock works with Windows 10 and newer, macOS 11+, and ChromeOS 100+ computers with a Thunderbolt, USB4, or full-featured USB-C port. Most Thunderbolt 4 Windows, and Mac computers will support up to 4x extended displays (Base model M3 Macs need to be in “clamshell mode” for 4x displays). ChromeOS and base model M1, M2 Macs will support 3x extended displays
- Lifetime Support: Every Plugable product, including this Thunderbolt docking station, comes with lifetime support. If you ever have questions, contact our North American-based team - even before purchase
Product Description
-
DisplayLink
Thunderbolt
The power of a Thunderbolt Certified dock with the universal compatibility of DisplayLink
-
Powerful
Charging
Keep your laptop fully powered with up to 100W (96W certified) host charging.
-
Full Speed
Data
40Gbps Thunderbolt connection to the host and three downstream Thunderbolt 4 ports for fast data
-
Charge it all
At the Same Time
With 96W laptop charging and three 15W Thunderbolt ports, your gadgets are good to go
-
Up to
Four Displays
Connect up to four displays on Windows computers through two HDMI ports and Two Thunderbolt Ports
-
Up to
Four Displays
2x HDMI, 2x Thunderbolt for four displays on Pro/Max Macs (4x on Base M3 Macs in clamshell mode)
Tech Specs
| Quad Display Support | Up to four 4K 60Hz displays via a combination of HDMI and USB-C connections |
| Powerful host charging | Provides up to 96W of power to charge the host computer |
| Downstream Thunderbolt port | Three downstream Thunderbolt ports provide up to 40Gbps of bandwidth for peripherals |
| Media Card Reader | Full size SD card reader means that no external adapters or dongles are required |
| Broad compatibility | Hybrid docking station combining the power of the Intel Goshen Ridge chipset and the DisplayLink DL-6950 chipset |
-
Will this docking station work with my computer?
A computer that has a Thunderbolt 4 port or USB4 port that is running Windows 10 or later or macOS 11 or later should be compatible with the Plugable TBT-6950PD docking station. Computers that do not meet these requirements are not supported.
-
Do I need to install software or drivers in order to use the TBT-6950PD docking station?
Yes, a DisplayLink software application must be installed on a Windows or Mac computer in order for the dock’s HDMI video outputs to function. This process is typically automatic on Windows, but must be manually installed on macOS.
-
Is this docking station compatible with M1 / M2 / M3 /M4 Mac laptops?
Mac laptops with ‘base’ M1, M2, or M3 processors will only support up to three external displays. Macs with M1 Pro, M1 Max, M2 Pro, M2 Max, M3 Pro, M3 Max, 'base' M4, M4 Pro, and M4 Max processors will support up to four external displays.
-
Are my monitors compatible with the TBT-6950PD docking station?
Monitors up to 3840x2160 resolution at a 60Hz refresh rate with HDMI or USB-C video inputs are supported. USB-C video adapters (purchased separately) can also be used if needed.
-
When installing DisplayLink software on my Mac, why is it necessary to grant ‘Screen Recording’ permission?
macOS requires "Screen Recording" for the DisplayLink driver to work properly. Approving it enables the driver to send data over USB from your computer to the DisplayLink-powered display. No data, images, or pixels are being stored or recorded.
Compare Plugable Docking Station's
| Customer Reviews | 4.7 out of 5 stars 74 | 4.1 out of 5 stars 245 | 4.1 out of 5 stars 333 | 4.1 out of 5 stars 115 |
| Price | $299.95$299.95 | $199.95$199.95 | $269.95$269.95 | $197.96$197.96 |
| Laptop Compatibility | USB4, Thunderbolt, USB-C | USB4, Thunderbolt 4 | USB4, Thunderbolt 4 | USB4, Thunderbolt 4 |
| Laptop Charging | 100W (96W Certified) | 100W (96W Certified) | 100W (98W Certified) | 100W (96W Certified) |
| Downstream Thunderbolt Ports | 3 | 1 | N/A | 2 |
| # of Ports | 11 | 13 | 16 | 11 |
| Ethernet | 1.0 Gigabit | 1.0 Gigabit | 2.5 Gigabit | 2.5 Gigabit |
| Media Card Reader | Full-size SD | Full-size SD and microSD | Full-size SD and microSD | Full-size SD |
